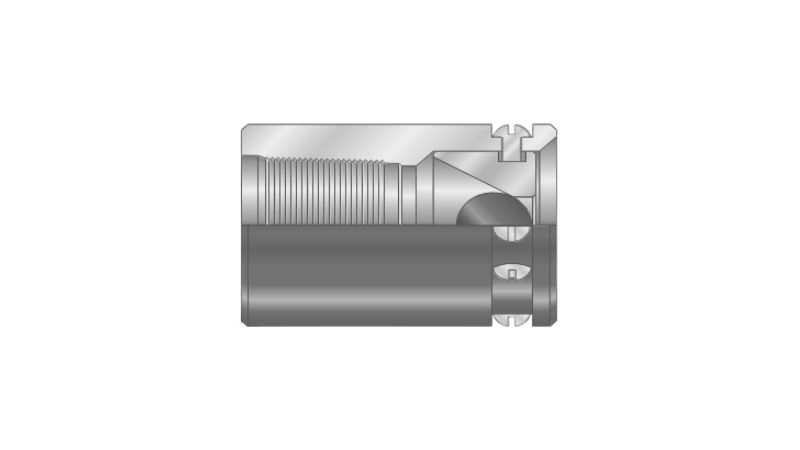

The BR-POP Pump Out Plug is available with various tubing connections to adapt to tailpipe run below hydraulic set packers. After the production string has been landed, the setting ball is dropped down the tubing. After the ball is on the ball seat, pressure applied to the tubing string will set the packer.
Additional pressure will shear out ball seat. With the removal of the plug, the coupling serves as a wireline re-entry guide. Premium threads available upon request.
Standard EUE connection or Premium connection are also available.
Special Features
- Rugged one-piece construction.
- Shear values easily adjusted in the field.
- Simple, field-proven design.
Technical document
Product Specification
| Tubing (in.) | Maximum OD (in.) | Minimum ID after shear out (in.) | Standard Thread Connection Box Up | Ball OD | Product Number |
|---|---|---|---|---|---|
| 2-3/8" | 3.250 | 2.000 | 2-3/8 EU 8 RD | 1.250 | BR-POP-230 |
| 2-7/8" | 4.250 | 2.375 | 2-7/8 EU 8 RD | 1.250 | BR-POP-270 |
| 3-1/2" | 4.500 | 3.000 | 3-1/2 EU 8 RD | 1.500 | BR-POP-350 |
| 4 | 4.750 | 3.000 | 4 NU 8 RD | 2.000 | BR-POP-400 |
| 4-1/2" | 5.500 | 4.000 | 4-1/2 EU 8 RD | 2.000 | BR-POP-450 |
NOTE: Other sizes and connections available upon request.
OPTIONS: Available with high shear, also with ball and ball seat.
