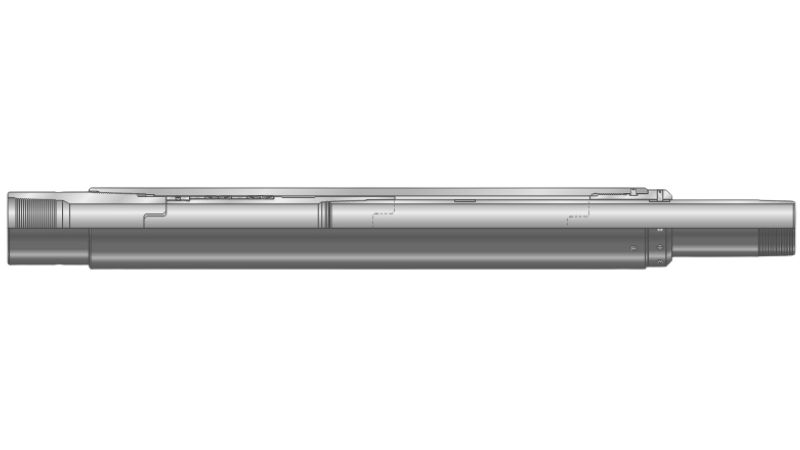

The BR-EXP-C, Model C Clutch-Style Expansion Joint compensates for tubing movement during injection and production, shut-in, or stimulation in single-string completions. The swivel feature allows the tubing to rotate, preventing excessive torque on the tubing connections, while the clutch at the top and bottom of the stroke facilitates setting and retrieving the production packer. The clutch-style expansion joint can be pinned in the open or closed position for deployment in the well. The pressure seal is maintained with a premium seal system.
Features:
- Can be pinned in open or closed position for deployment.
- Can be stacked for additional stroke requirements.
- Full-bore construction.
Technical document
Product Specification
| Tubing Size | Tool OD | Tool ID | Stroke Length | Part Number |
|---|---|---|---|---|
| 2-3/8" | 3.500 | 1.938 | 10 Feet | BR-EXP-C-23010 |
| 2-7/8" | 4.250 | 2.375 | 10 Feet | BR-EXP-C-27010 |
| 3-1/2" | 5.000 | 3.000 | 10 Feet | BR-EXP-C-35010 |
| 4-1/2" | 6.250 | 4.000 | 10 Feet | BR-EXP-C-45010 |
NOTE: Other sizes and connections available upon request.
