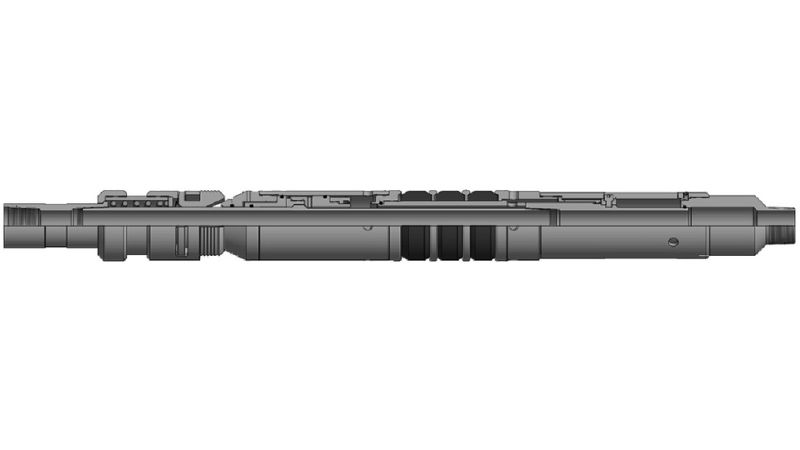

The BR-SS-II is a compression set packer, which only requires straight set down weight to set. This tool must be run above another packer, such as an I-X, IXS or Hydraulic Packers for selective production, treating, or injection in multi-zone completions. It can also be used to isolate casing holes or perforations. The BR-SSII is designed with upper slips for use where high differential pressures from below the packer are expected. The internal latch is designed to prevent pre-setting of the tool during run in.
This packer features a large by-pass area to prevent swabbing when running and retrieving. Once the packer is set, pressure from above or below acts down on the valve to maintain the seal and prevent upward movement of the tubing. When releasing, the valve allows debris to be washed from the upper slips. This packer is equipped with an internal latch to prevent setting prematurely when running in the hole. When releasing, the latch re-engages to allow movement downhole.
Features:
- Simple Design.
- Internal Bypass.
- Equalizing valve.
- Keyed for rotation through Packer.
- Internal Latch for prevent pre setting.
- Pressure Compensating Piston.
Technical document
Product Specifications
| CASING | PACKER | ||||||
|---|---|---|---|---|---|---|---|
| Size (in.) | Weight (lbs/ft) | MIN. I.D. (in.) | MAX. I.D. (in.) | Gage O.D. (in.) | MIN. I.D. (in.) | Thread Connection | Part Number |
| 2.875” | 6.4-6.5 | 2.275 | 2.469 | 2.250 | 0.750 | 1.090 EU 10 RD | BR-SS-II-270109 |
| 3.000” | 7.7-10.2 | 2.992 | 3.068 | 2.781 | 0.750 | 1.090 EU 10 RD | BR-SS-II-300109 |
| 4.000” | 9.5-11.0 | 3.476 | 3.548 | 3.250 | 1.625 | 2-3/8” EU 8RD | BR-SS-II-400230 |
| 4.500” | 15.1-16.6 | 3.754 | 3.826 | 3.594 | 1.938 | 2-3/8” EU 8RD | BR-SS-II-450230B |
| 4.500” | 9.5-13.5 | 3.920 | 4.090 | 3.750 | 1.938 | 2-3/8” EU 8RD | BR-SS-II-450230A |
| 5.000” | 18.0-21.0 | 4.154 | 4.276 | 4.000 | 1.938 | 2-3/8” EU 8R | BR-SS-II-500230B |
| 5.000” | 11.5-15.0 | 4.408 | 4.560 | 4.125 | 1.938 | 2-3/8” EU 8R | BR-SS-II-500230A |
| 5.500” | 20.0 - 23.0 | 4.67 | 4.778 | 4.500 | 1.969 | 2-3/8" EU 8 RD | BR-SS-II-550230B |
| 5.500” | 14.0 - 20.0 | 4.778 | 5.044 | 4.625 | 1.969 | 2-3/8" EU 8 RD | BR-SS-II-550230A |
| 5.500” | 20.0 - 23.0 | 4.670 | 4.778 | 4.500 | 2.375 | 2-7/8" EU 8 RD | BR-SS-II-550270B |
| 5.500” | 14.0 - 20.0 | 4.778 | 5.044 | 4.625 | 2.375 | 2-7/8" EU 8 RD | BR-SS-II-550270A |
| 7.000” | 26.0-32.0 | 6.094 | 6.276 | 5.875 | 2.500 | 2-7/8" EU 8 RD | BR-SS-II-700270B |
| 7.000” | 17.0-26.0 | 6.276 | 6.538 | 6.000 | 2.500 | 2-7/8" EU 8 RD | BR-SS-II-700270A |
| 7.000” | 26.0-32.0 | 6.094 | 6.276 | 5.875 | 3.000 | 3-1/2” EU 8 RD | BR-SS-II-700350B |
| 7.000” | 17.0-26.0 | 6.276 | 6.538 | 6.000 | 3.000 | 3-1/2” EU 8 RD | BR-SS-II-700350A |
| 7.625” | 33.7-39.0 | 6.625 | 6.765 | 6.453 | 2.500 | 2-7/8" EU 8 RD | BR-SS-II-760270B |
| 7.625” | 24.0 – 29.7 | 6.875 | 7.025 | 6.675 | 2.500 | 2-7/8" EU 8 RD | BR-SS-II-760270A |
| 7.625” | 33.7-39.0 | 6.625 | 6.765 | 6.453 | 3.000 | 3-1/2” EU 8 RD | BR-SS-II-760350B |
| 7.625” | 24.0 – 29.7 | 6.875 | 7.025 | 6.675 | 3.000 | 3-1/2” EU 8 RD | BR-SS-II-760350A |
| 8.625” | 24.0-40.0 | 7.725 | 8.097 | 7.500 | 3.000 | 3-1/2” EU 8 RD | BR-SS-II-860350 |
| 9.625” | 43.5-53.5 | 8.535 | 8.755 | 8.250 | 3.000 | 3-1/2” EU 8 RD | BR-SS-II-960350B |
| 9.625” | 32.3-43.5 | 8.755 | 9.001 | 8.500 | 3.000 | 3-1/2” EU 8 RD | BR-SS-II-960350A |
| 10.750” | 32.7 - 55.5 | 9.760 | 10.192 | 9.500 | 4.000 | 4-1/2” EU 8 RD | BR-SS-II-1075450 |
| 11.750” | 42.0 - 60.0 | 10.772 | 11.084 | 10.500 | 4.000 | 4-1/2” EU 8 RD | BR-SS-II-1175450 |
| 13.375” | 48.0 - 77.0 | 12.275 | 12.715 | 12.000 | 4.000 | 4-1/2” EU 8 RD | BR-SS-II-1330450 |
