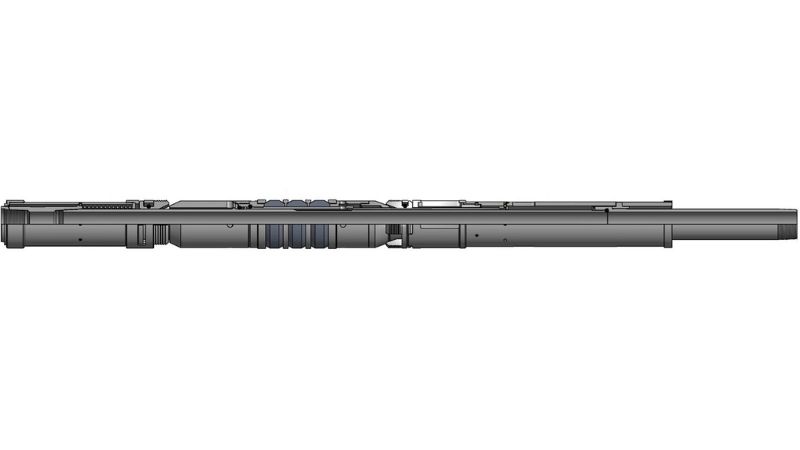

The BR-WSIX Wireline Set Packer is one of the most versatile packers on the market. This packer is a modification of the BR-WSIX Wireline Set Packer with the advantage of being able to set on electric line or hydraulically.
An On-Off Tool Stinger with a Wireline Plug installed can be attached to the top of this packer. This packer can then be lubricated in the hole and set under pressure. Once set, casing pressure can be bled off, and the tubing with an On-Off Tool Overshot can be run and latched onto the packer. The Wireline Plug can then be removed.
This packer easily converts to a mechanically set BR-WSIX Wireline Set Packer – just remove the shear screws and install drag blocks and drag block springs. The BR-WSIX Wireline Set Packer sets with 1/4 right-hand rotation and releases with 1/4 right-hand rotation. The BR-WSIX Wireline Set Packer can be left in tension, compression or neutral.
NOTE: Stinger and setting equipment must be purchased separately.
Features:
- Wireline or tubing set.
- Sequentially released upper slip system.
- By-pass valve opens before upper slips are released.
- Available in shear release.
- Easily converts to BR-IX version – 1/4 turn to set, 1/4 turn to release.
Technical document
Product Specifications
| CASING | PACKER | ||||||
|---|---|---|---|---|---|---|---|
| O.D. (in.) | Weight (lb/ft) | MIN. (in.) | MAX. I.D. (in.) | Gage O.D. (in.) | MIN. I.D. (in.) | Thread Connections | Part Number |
| 4.000” | 9.5 – 11.0 | 3.476 | 3.548 | 3.250 | 1.500 | 1.900 EU 10 RD | BR-WSIX-400190 |
| 4.500” | 13.5 - 15.1 | 3.826 | 3.920 | 3.685 | 1.922 | 2-3/8" EU 8 RD | BR-WSIX-450230B |
| 4.500” | 9.5 - 13.5 | 3.920 | 4.090 | 3.750 | 1.922 | 2-3/8" EU 8 RD | BR-WSIX-450230A |
| 5.000” | 18.0 - 20.8 | 4.156 | 4.276 | 4.000 | 1.922 | 2-3/8" EU 8 RD | BR-WSIX-500230B |
| 5.000” | 11.5 - 15.0 | 4.408 | 4.560 | 4.125 | 1.922 | 2-3/8" EU 8 RD | BR-WSIX-500230A |
| 5.500” | 20.0 - 23.0 | 4.670 | 4.778 | 4.500 | 1.969 | 2-3/8" EU 8 RD | BR-WSIX-550230B |
| 5.500” | 14.0 - 20.0 | 4.778 | 5.044 | 4.625 | 1.969 | 2-3/8" EU 8 RD | BR-WSIX-550230A |
| 5.500” | 20.0 - 23.0 | 4.670 | 4.778 | 4.500 | 2.375 | 2-7/8" EU 8 RD | BR-WSIX-550270B |
| 5.500” | 14.0 - 20.0 | 4.778 | 5.044 | 4.625 | 2.375 | 2-7/8" EU 8 RD | BR-WSIX-550270A |
| 5.750” | 18.6-25.0 | 4.882 | 5.118 | 4.625 | 1.984 | 2-3/8" EU 8 RD | BR-WSIX-575230B |
| 5.750” | 14.0-17.0 | 5.190 | 5.290 | 4.875 | 1.984 | 2-3/8" EU 8 RD | BR-WSIX-575230A |
| 6.625” | 24.0 - 32.0 | 5.675 | 5.921 | 5.500 | 2.500 | 2-7/8" EU 8 RD | BR-WSIX-660270C |
| 6.625” | 20.0-24.0 | 5.921 | 6.049 | 5.750 | 2.500 | 2-7/8" EU 8 RD | BR-WSIX-660270B |
| 6.625” | 17.0-24.0 | 5.921 | 6.135 | 5.781 | 2.500 | 2-7/8" EU 8 RD | BR-WSIX-660270A |
| 7.000” | 29.0-35.0 | 6.004 | 6.184 | 5.813 | 2.500 | 2-7/8” EUE 8RD | BR-WSIX-700270D |
| 7.000” | 26.0-35.0 | 6.004 | 6.276 | 5.875 | 2.500 | 2-7/8” EUE 8RD | BR-WSIX-700270C |
| 7.000” | 17.0-26.0 | 6.276 | 6.538 | 6.000 | 2.500 | 2-7/8” EUE 8RD | BR-WSIX-700270B |
| 7.000” | 17.0-20.0 | 6.456 | 6.538 | 6.250 | 2.500 | 2-7/8” EUE 8RD | BR-WSIX-700270A |
| 7.000” | 29.0-35.0 | 6.004 | 6.184 | 5.813 | 3.000 | 3.500” EUE 8RD | BR-WSIX-700350D |
| 7.000” | 26.0-35.0 | 6.004 | 6.276 | 5.875 | 3.000 | 3.500” EUE 8RD | BR-WSIX-700350C |
| 7.000” | 17.0-26.0 | 6.276 | 6.538 | 6.000 | 3.000 | 3.500” EUE 8RD | BR-WSIX-700350B |
| 7.000” | 17.0-20.0 | 6.456 | 6.538 | 6.250 | 3.000 | 3.500” EUE 8RD | BR-WSIX-700350A |
| 7.625” | 39.0-33.7 | 6.625 | 6.766 | 6.500 | 3.000 | 3-1/2" EU 8 RD | BR-WSIX-760350B |
| 7.625” | 24.0-29.7 | 6.875 | 7.025 | 6.688 | 3.000 | 3-1/2" EU 8 RD | BR-WSIX-760350 |
| 8.625” | 32.0-40.0 | 7.725 | 7.921 | 7.500 | 4.000 | 4-1/2” EUE 8RD | BR-WSIX-860450B |
| 8.625” | 20.0-28.0 | 8.017 | 8.191 | 7.750 | 4.000 | 4-1/2” EUE 8RD | BR-WSIX-860450A |
| 9.625” | 43.5-53.5 | 8.535 | 8.755 | 8.250 | 4.000 | 4-1/2" EU 8 RD | BR-WSIX-960450B |
| 9.625” | 32.3-43.5 | 8.755 | 9.001 | 8.500 | 4.000 | 4-1/2" EU 8 RD | BR-WSIX-960450A |
