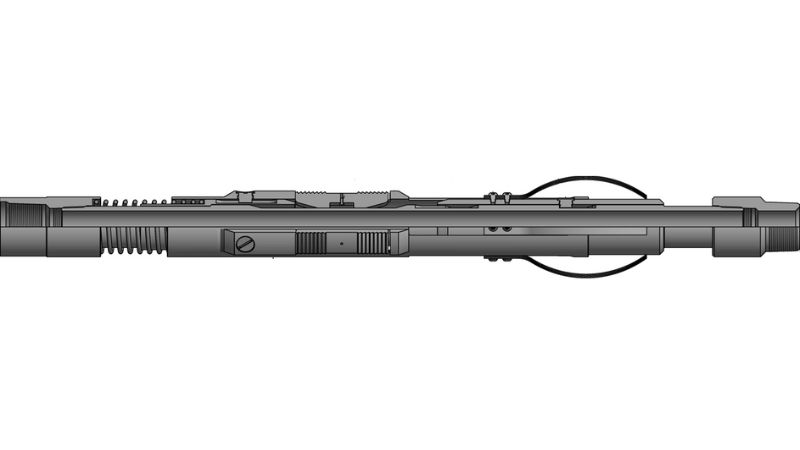

Increased fluid bypass in the annulus is made possible by the mechanically set and retrievable ATLAS-QTR Tubing Anchor. The anchor is appropriate for deep or shallow well treatment like testing, injection, pumping, and flow. Depending on the well's conditions and the intended use, the slip design of the anchor permits it to be left in either tension or compression. With a 1/4 turn right-hand set and right-hand release, the J-slot design helps with simple setting and releasing.
Features:
- 1/4 turn right-hand set, 1/4 turn right-hand release
- Safety shear release
- Large flow area around tool
Technical document
Product Specifications
| Size (inches) | Weight (lbs/ft) | Recommended Hole Size (inches) | Tool OD (inches) | Tool ID (inches) | Thread Connections (Box Up / Pin Down) | Part Number |
|---|---|---|---|---|---|---|
| 4-1/2 | 9.5 - 13.5 | 3.920 - 4.090 | 3.750 | 1.250 | 2-3/8 EUE | AT-QTR-450A |
| 5-1/2 | 13.0 - 23.0 | 4.670 - 5.044 | 4.500 | 1.500 | 2-3/8 EUE | AT-QTR-550A |
| 5-1/2 | 13.0 - 23.0 | 4.670 - 5.044 | 4.500 | 2.000 | 2-7/8 EUE | AT-QTR-550B |
| 7.00 | 23.0 - 35.0 | 6.004 - 6.366 | 5.750 | 2.380 | 2-7/8 EUE | AT-QTR-700A |
| 7.00 | 23.0 - 35.0 | 6.004 - 6.366 | 5.750 | 2.380 | 3-1/2 EUE | AT-QTR-700B |
