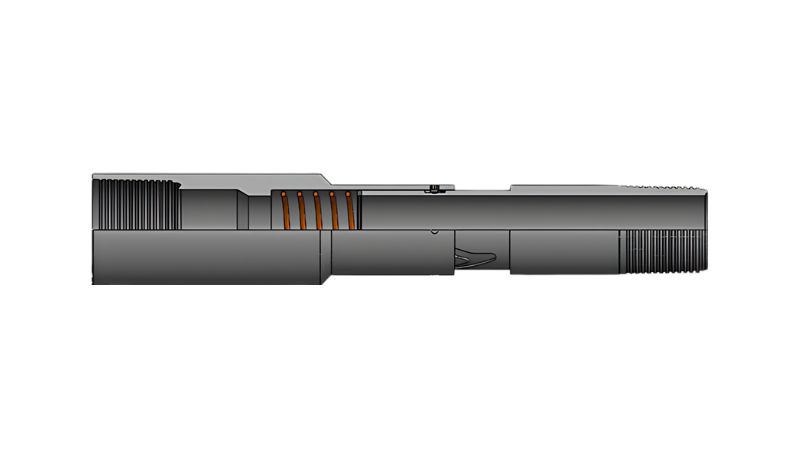

The BR-AS-IDXS is a Indexing sub to facilitates entry into packer seal bores by rotating the mule shoe bevel as the tubing is slacked off. The indexing mechanism will increment the sub shoe angle with each subsequent downward motion, up to 360° in four set-down motions.
Features:
- 360 Degree Rotational Capability.
- No restriction to completion ID .
- Spring Return to assist rotation.
- Intervention “friendly” entry guide design.
Technical document
Product Specification
| Size | Tool OD | Tool ID | Thread Connection | Part Number |
| 2.688 | 2.625 | 1.938 | 2.313 Stub Acme | BR-AS-IDXS-260 |
| 3.000 | 3.000 | 2.375 | 2.688 Stub Acme | BR-AS-IDXS-300 |
| 3.250 | 3.250 | 2.375 | 2.875 Stub Acme | BR-AS-IDXS-325 |
| 4.000 | 4.000 | 2.969 | 3.625 Stub Acme | BR-AS-IDXS-400 |
| 5.000 | 5.000 | 3.875 | 4.500 Stub Acme | BR-AS-IDXS-500 |
NOTE: Other sizes and connections available upon request.
