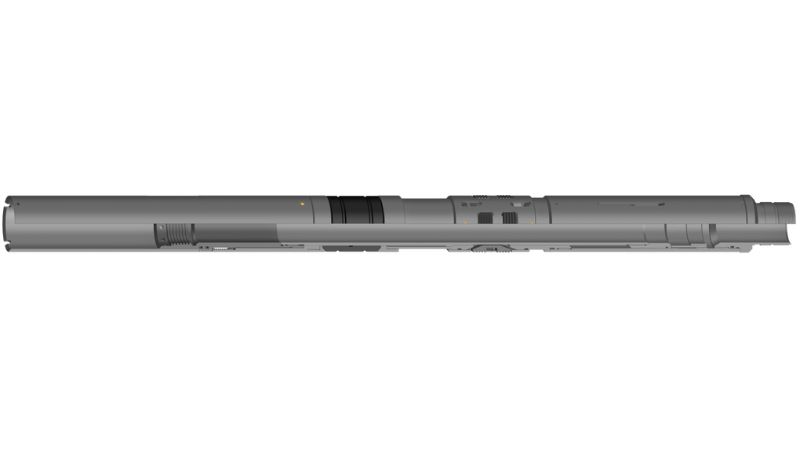

Retrievable Seal Bore Packers, like the BR-RSDB, offer excellent performance, a straightforward design, and favorable economics. This packer seals in a higher sealbore, allowing a bigger ID to pass through the packer. With a 7,500PSI rating, this packer is capable of withstanding high temperatures and corrosion environments.
A suitable retrieving tool is required to retrieve these packers and can be sold separately.
Features:
- Reliable, Dependable, Field proven design.
- Economical
- Easy to retrieve and redress.
- Premium elostomer for high temperature available on request.
- Rotationally locked components for ease in milling.
- Easily modified for a wide range of conditions and temperatures.
Technical document
Product Specifications
| Size (inches) | Weight (lbs/ft) | Recommended Hole Size (inches) | Tool OD (inches) | Packer Bore (inches) | Upper Bore (inches) | Part Number |
|---|---|---|---|---|---|---|
| 4-1/2 | 11.6 - 13.5 | 3.920 - 4.000 | 3.750 | 2.062 | 2.500 | BR-RSDB-450250B |
| 4-1/2 | 9.5 - 10.5 | 4.052 - 4.090 | 3.938 | 2.062 | 2.500 | BR-RSDB-450250A |
| 5.00 | 18.0 - 21.4 | 4.126 - 4.276 | 4.000 | 2.688 | 3.000 | BR-RSDB-500260B |
| 5.00 | 11.5 - 15.0 | 4.408 - 4.560 | 4.250 | 2.688 | 3.000 | BR-RSDB-500260A |
| 5-1/2 | 20.0 - 23.0 | 4.670 - 4.778 | 4.500 | 3.000 | 4.000 | BR-RSDB-550300B |
| 5-1/2 | 14.0 - 20.0 | 4.778 - 5.012 | 4.625 | 3.000 | 4.000 | BR-RSDB-550300A |
| 7.00 | 29.0 - 35.0 | 6.004 - 6.184 | 6.000 | 3.250 | 5.000 | BR-RSDB-700325B |
| 7.00 | 23.0 - 32.0 | 6.094 - 6.062 | 5.875 | 3.250 | 5.000 | BR-RSDB-700325A |
| 7.00 | 29.0 - 35.0 | 6.004 - 6.184 | 6.000 | 4.000 | 5.250 | BR-RSDB-700400B |
| 7.00 | 23.0 - 32.0 | 6.094 - 6.366 | 5.875 | 4.000 | 5.250 | BR-RSDB-700400A |
| 7-5/8 | 29.7 - 39.0 | 6.625 - 6.875 | 6.500 | 4.000 | 5.000 | BR-RSDB-760400B |
| 7-5/8 | 20.0 - 29.7 | 6.875 - 7.125 | 6.688 | 4.000 | 5.000 | BR-RSDB-760400A |
| 9-5/8 | 47.0 - 53.5 | 8.535 - 8.681 | 8.375 | 4.000 | 6.000 | BR-RSDB-960475A |
| 9-5/8 | 47.0 - 53.5 | 8.535 - 8.681 | 8.375 | 4.750 | 6.000 | BR-RSDB-960475B |
NOTE: Other sizes of sealbore and connections available upon request. Please contact Brighatech Sales.
