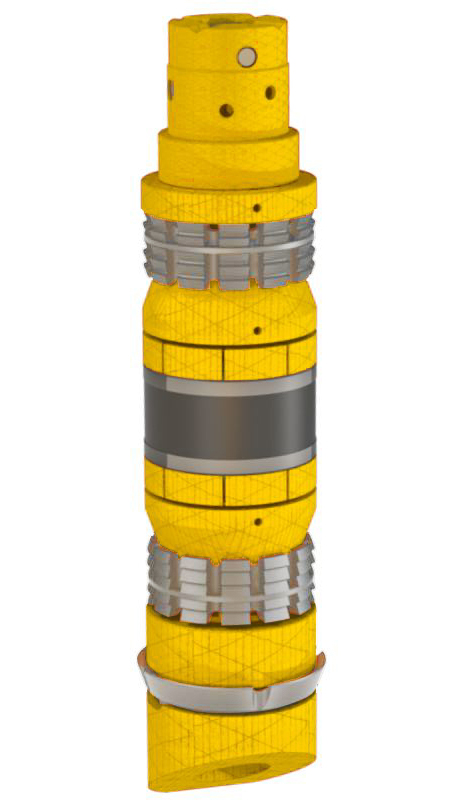

TORA Composite Bridge Plug

With its superior performance in wellbore isolation, the TORA Composite Bridge Plug is a vital tool for the oil and gas sector. This plug is made especially to endure high-pressure stage frac operations, ensuring a dependable and affordable multiple zone isolation solution. Complete flow obstruction is provided from both above and below the plug due to its innovative solid bore construction. The composition of this composite bridge plug improves operating efficiency by enabling effective milling and removal from the wellbore with regular drill cycles. We combine innovation and reliability in our Composite Bridge Plug.

The tool's ability to prevent flow from both above and below is boosted by the TORA Composite Bridge Plug. Due to the composite material's nature, milling and removal of the plugs from the wellbore can be accomplished with efficiency. The TORA Composite Bridge Plug offers consistent drill times of up to 20 minutes and can be installed safely in up to P110 grade casing.

This plug can be set using Baker 10 or 20 depending on plug size wit associated adapter kits.

Features:

• Plug made from 100% high grade composite material rated up to 10K PSI and 300°F (350°F option available)
• Traditional gray cast iron slips heat treated to wicker depth only (Composite upper slip optional)
• Holes drilled entirely through slip segments, which allows segment to break into smaller pieces during millout
• Pump Down Wiper is slotted and easily threaded into the machined groove of the guide shoe
• Can be drilled using conventional or coiled tubing
