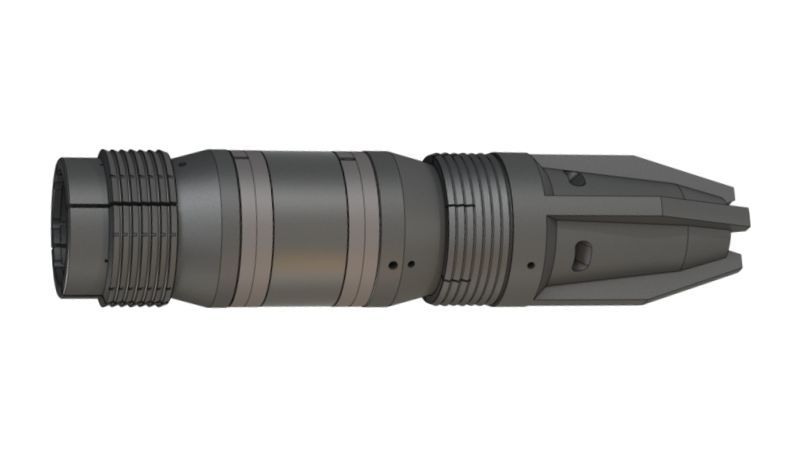

BR-MSCR Cement Retainer is a compact and economical unit engineered for fast running down hole on Mechanical Setting tool. This Cement Retainer is a fully drillable, high performance permanent TYPE suitable for zone abandonment or temporary suspension.
The Cement Retainer may be set mechanically by using the MST. Cement Retainer also converts to Bridge Plug by replacing Bottom and insert the plug.
Features
- Cast iron drillable design.
- Runs on a Mechanical Setting Tool.
- Converts to a Mechanical Set Bridge Plug.
- Components rotationally locked for easy drill out.
- Temperature rating to 400 ° Fahrenheit.
- Differential pressure rating to 10,000 psi.
Technical document
Product Specifications
| CASING | CEMENT RETAINER (Mechanical Set) | ||||
|---|---|---|---|---|---|
| O.D. (Inch) |
WEIGHT (LB/FT) | MIN. I.D. (Inch) | MAX. I.D. (Inch) | MAX. O.D. (Inch) | Part Number |
| 4.500” | 9.5-15.1 | 3.826 | 4.090 | 3.625 | BR-MSCR-450 |
| 5.000” | 11.5-18.0 | 4.276 | 4.560 | 4.000 | BR-MSCR-500 |
| 5.500” | 13.0-23.0 | 4.670 | 5.118 | 4.375 | BR-MSCR-550 |
| 5.750” | 14.0-25.2 | 4.890 | 5.290 | 4.750 | BR-MSCR-575 |
| 6.625” | 17.0-35.0 | 5.575 | 6.135 | 5.375 | BR-MSCR-660 |
| 7.000” | 17.0-35.0 | 6.004 | 6.538 | 5.688 | BR-MSCR-700 |
| 7.000” | 35.0-38.0 | 5.920 | 6.004 | 5.625 | BR-MSCR-705 |
| 7.625” | 20.0-39.0 | 6.625 | 7.125 | 6.375 | BR-MSCR-760 |
| 8.625” | 24.0-49.0 | 7.511 | 8.097 | 7.125 | BR-MSCR-860 |
| 9.625” | 29.3-61.1 | 8.375 | 9.063 | 8.250 | BR-MSCR-960 |
| 10.750” | 32.75-60.7 | 9.660 | 10.192 | 9.500 | BR-MSCR-1075 |
| 11.750” | 60.0-83.0 | 10.368 | 10.772 | 10.000 | BR-MSCR-1175B |
| 11.750” | 38.0-60.0 | 10.772 | 11.150 | 10.500 | BR-MSCR-1175A |
| 13.375” | 48.0-72.0 | 12.347 | 12.715 | 12.000 | BR-MSCR-1330 |
