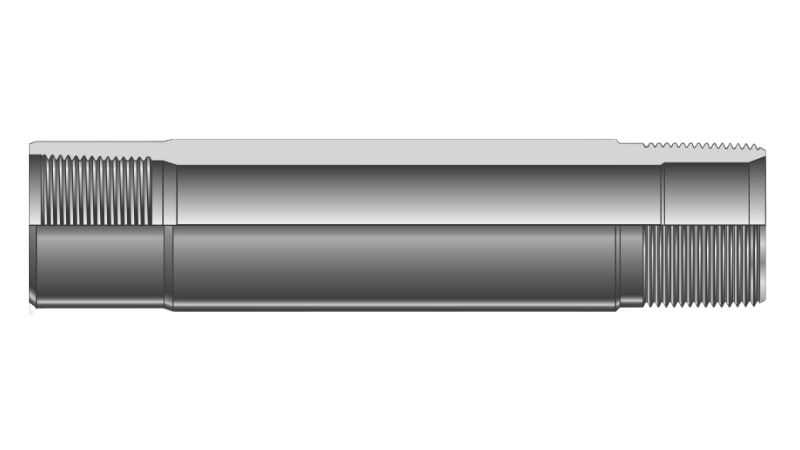

Flow couplings are thick-walled tubular components normally utilized in completions and located adjacent to changes in the tubing ID or across from perforations.Flow couplings are used where erosional turbulence caused by changes in the tubing ID is located in the thicker wall of the flow coupling, rather than in the production tubing. Flow couplings are generally connection OD and are available in 3-, 4-, 6- and 8-ft [1.0-, 1.3-, 2.0-, and 2.7-m] lengths.
Features:
- Connection OD, tubing ID
- Available in various lengths
- Available in various materials
Technical document
Product Specification
| Tubing | Max.OD (in.) | Min.ID (in.) | Part Number | |
|---|---|---|---|---|
| Size (in.) | Weight (in.) | |||
| 2.375 | 4.600 | 3.000 | 1.969 | BR-AS-FC-230 |
| 2.875 | 6.500 | 3.625 | 2.375 | BR-AS-FC-270 |
| 3.500 | 9.300 | 4.500 | 2.969 | BR-AS-FC-350 |
| 4.500 | 12.800 | 5.625 | 3.833 | BR-AS-FC-450 |
| 5.500 | 17.000 | 6.000 | 4.767 | BR-AS-FC-550 |
| 7.000 | 26.000 | 7.625 | 6.151 | BR-AS-FC-700 |
NOTE: Other sizes and connections available upon request.
