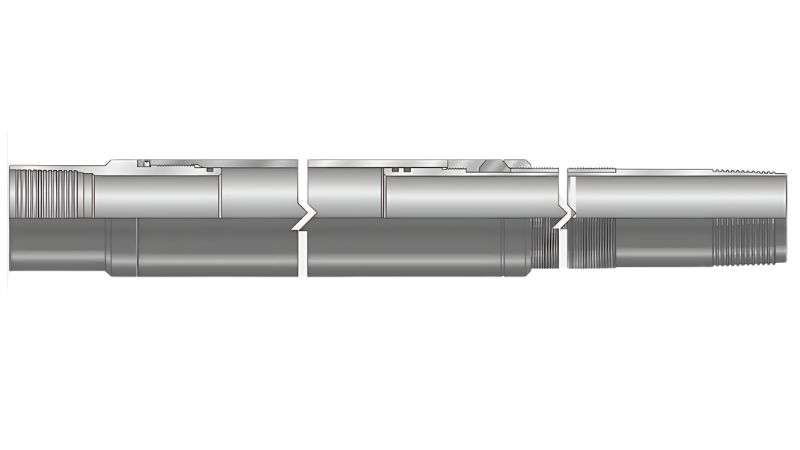

The BR-ADS is Adjustable Sub is typically run below a multi string packer, allowing easier connection or space out of the tubing between multiple string packer and tailpipe. The rotational lock feather allows the sub to be locked in place at any desire length up to 24 inches and prevents telescoping or rotational movement.
Features:
- Sub can lock at any length up to 24 inches.
- Lock prevents rotation and telescoping.
Technical document
Product Specification
| SIZE | OD (Inches) | ID (Inches) | END CONNECTIONS | Part Number |
|---|---|---|---|---|
| 2-3/8” | 3.000 | 1.938 | 2-3/8” EUE 8RD THREAD | BR-ADS-230 |
| 2-7/8” | 3.750 | 2.375 | 2-7/8” EUE 8RD THREAD | BR-ADS-270 |
| 3-1/2” | 4.500 | 2.875 | 3-1/2” EUE 8RD THREAD | BR-ADS-350 |
| 4-1/2” | 5.500 | 3.875 | 4-1/2” EUE 8RD THREAD | BR-ADS-450 |
Note: Other Sizes are available upon request. Please contact Brighatech sales.
