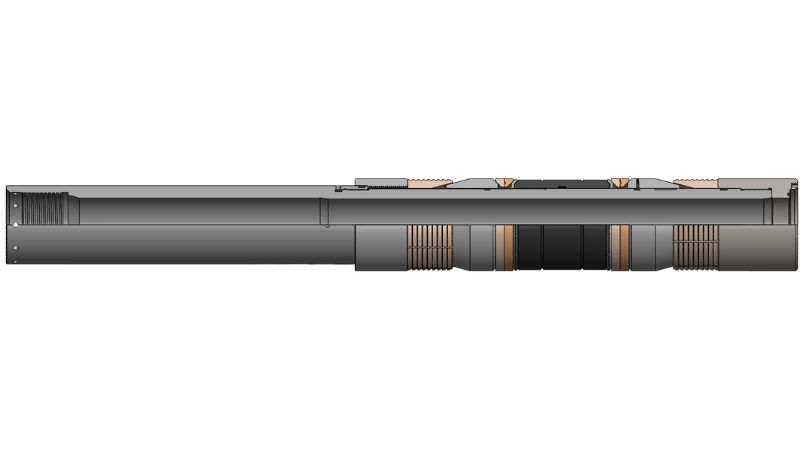

The BR-WPDBP is a wireline set Permanent Packer, a robust, high-performance permanent packer, is designed for one-trip, high-differential pressure in single or multizone applications in straight to highly deviated wellbores. Performance-rating envelopes display combination loading from pressure and axial loads.
Metal back up on Element Rings provides full round casing contact to prevent rubber extrusion at high temperature and pressure.
Features:
- Full envelope-tested to ISO14310 requirements.
- High strength mandrel suitable for sour service.
- Available with materials tailored for hostile environments.
- Full-circle slips for higher strength.
- Elastomer options available for hostile environments.
Technical document
Product Specification
| Size (inches) | Weight (lbs/ft) | Recommended Hole Size (inches) | Tool OD (inches) | Packer Bore (inches) | Part Number |
|---|---|---|---|---|---|
| 4-1/2 | 11.6 - 13.5 | 3.920 - 4.000 | 3.625 | 2.500 | BR-WPDBP-450250B |
| 4-1/2 | 9.5 - 10.5 | 4.052 - 4.090 | 3.750 | 2.500 | BR-WPDBP-450250A |
| 5.00 | 18.0 - 21.4 | 4.126 - 4.276 | 4.000 | 2.688 | BR-WPDBP-500260B |
| 5.00 | 11.5 - 15.0 | 4.408 - 4.560 | 4.250 | 2.688 | BR-WPDBP-500260A |
| 5-1/2 | 20.0 - 23.0 | 4.670 - 4.778 | 4.250 | 3.000 | BR-WPDBP-550300B |
| 5-1/2 | 14.0 - 20.0 | 4.778 - 5.012 | 4.500 | 3.000 | BR-WPDBP-550300A |
| 6-5/8 | 17.0 - 32.0 | 5.675 - 6.135 | 5.500 | 3.250 | BR-WPDBP-660325 |
| 7.00 | 17.0 - 20.0 | 6.456 - 6.538 | 6.188 | 3.250 | BR-WPDBP-700325A |
| 7.00 | 20.0 - 23.0 | 6.366 - 6.456 | 6.000 | 3.250 | BR-WPDBP-700325B |
| 7.00 | 23.0 - 32.0 | 6.094 - 6.366 | 5.625 | 3.250 | BR-WPDBP-700325C |
| 7.00 | 32.0 - 38.0 | 5.920 - 6.094 | 5.563 | 3.250 | BR-WPDBP-700325D |
| 7.00 | 26.0 - 29.0 | 6.184 - 6.276 | 5.875 | 3.250 | BR-WPDBP-700325E |
| 7.00 | 17.0 - 20.0 | 6.456 - 6.538 | 6.188 | 4.000 | BR-WPDBP-700400A |
| 7.00 | 20.0 - 23.0 | 6.366 - 6.456 | 6.000 | 4.000 | BR-WPDBP-700400B |
| 7.00 | 23.0 - 32.0 | 6.094 - 6.366 | 5.625 | 4.000 | BR-WPDBP-700400C |
| 7.00 | 32.0 - 38.0 | 5.920 - 6.094 | 5.563 | 4.000 | BR-WPDBP-700400D |
| 7.00 | 26.0 - 29.0 | 6.184 - 6.276 | 5.875 | 4.000 | BR-WPDBP-700400E |
| 7-5/8 | 24.0 - 33.7 | 6.765 - 7.025 | 6.500 | 3.250 | BR-WPDBP-760325A |
| 7-5/8 | 33.7 - 39.0 | 6.625 - 6.765 | 6.250 | 3.250 | BR-WPDBP-760325B |
| 7-5/8 | 24.0 - 33.7 | 6.765 - 7.025 | 6.500 | 4.000 | BR-WPDBP-760400A |
| 7-5/8 | 33.7 - 39.0 | 6.625 - 6.765 | 6.250 | 4.000 | BR-WPDBP-760400B |
| 8-5/8 | 24.0 - 36.0 | 7.825 - 8.097 | 7.500 | 4.000 | BR-WPDBP-860400A |
| 8-5/8 | 36.0 - 49.0 | 7.511 - 7.825 | 7.250 | 4.000 | BR-WPDBP-860400B |
| 8-5/8 | 24.0 - 36.0 | 7.825 - 8.097 | 7.500 | 4.750 | BR-WPDBP-860475A |
| 8-5/8 | 36.0 - 49.0 | 7.511 - 7.825 | 7.250 | 4.750 | BR-WPDBP-860475B |
| 9-5/8 | 47.0 - 53.5 | 8.535 - 8.681 | 8.125 | 4.750 | BR-WPDBP-960475B |
| 9-5/8 | 29.3 - 47.0 | 9.063 - 8.535 | 8.375 | 4.750 | BR-WPDBP-960475A |
| 9-5/8 | 47.0 - 53.5 | 8.535 - 8.681 | 8.125 | 6.000 | BR-WPDBP-960600B |
| 9-5/8 | 29.3 - 47.0 | 9.063 - 8.535 | 8.375 | 6.000 | BR-WPDBP-960600A |
