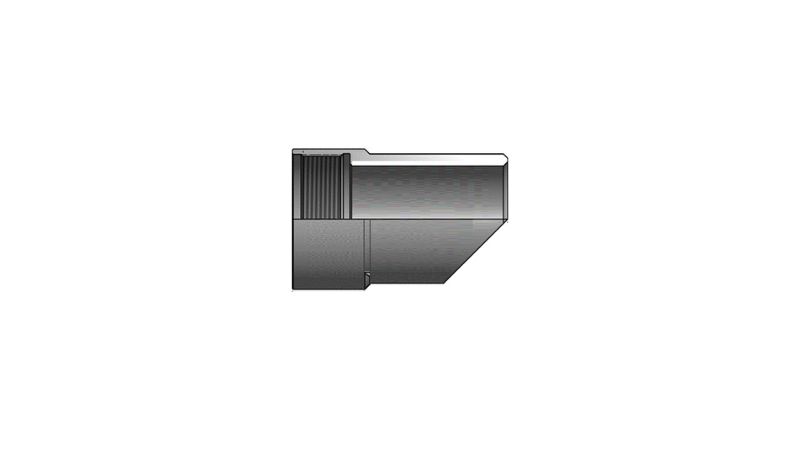

The BR-WLEG Wireline Entry Guide is standard with the Seal Assembly to allow for easy entry into the packer sealbore.
Technical document
Product Specification
| Packer Bore (inches) | Part OD (inches) | Part ID (inches) | Tool Thread Connection (Box Up) | Part Number |
|---|---|---|---|---|
| 1.750 | 1.719 | 1.250 | 1.4375-10 STUB ACME | BR-WLEG-1750 |
| 2.500 | 2.438 | 1.875 | 2.125-10 STUB ACME | BR-WLEG-2500 |
| 2.688 | 2.625 | 1.938 | 2.250-8 STUB ACME | BR-WLEG-2688 |
| 3.000 | 2.938 | 2.375 | 2.625-8 STUB ACME | BR-WLEG-3000 |
| 3.250 | 3.188 | 2.375 | 2.875-8 STUB ACME | BR-WLEG-3250 |
| 4.000 | 3.938 | 3.000 | 3.625-8 STUB ACME | BR-WLEG-4000 |
| 4.750 | 4.719 | 3.500 | 4.125-8 STUB ACME | BR-WLEG-4750 |
| 5.000 | 4.938 | 4.000 | 4.625-8 STUB ACME | BR-WLEG-5000 |
| 6.000 | 5.938 | 4.750 | 5.500-8 STUB ACME | BR-WLEG-6000 |
| 7.000 | 6.938 | 5.825 | 6.500-8 STUB ACME | BR-WLEG-7000 |
| 9.000 | 8.938 | 8.000 | 8.625-8 STUB ACME | BR-WLEG-9000 |
