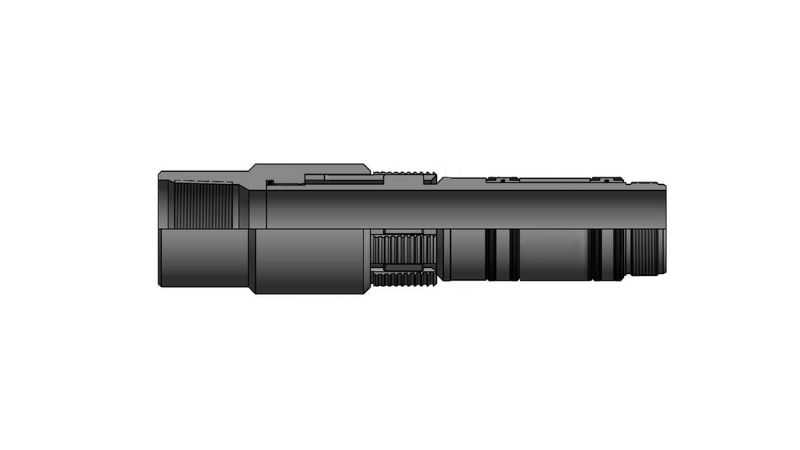

The BR-ACHL Anchor Latch Seal Assembly is used when floating seals are not required. This assembly allows the tubing string to be in tension or compression. Upon set down the anchor latches into the packer and can be removed with eight to ten right-hand turns.
Technical document
Product Specification
| Packer Bore (inches) | Tool OD (inches) | Tool ID (inches) | Thread Connections (Box Up / Pin Down) | Part Number |
|---|---|---|---|---|
| 1.750 | 2.500 | 1.125 | 1.900 NUE | BR-ACHL-1750 |
| 2.500 | 3.500 | 1.938 | 2-3/8 EUE & STUB ACME | BR-ACHL-2500 |
| 2.688 | 3.625 | 1.938 | 2-3/8 EUE & STUB ACME | BR-ACHL-2688 |
| 3.000 | 4.000 | 2.375 | 2-7/8 EUE & STUB ACME | BR-ACHL-3000 |
| 3.250 | 4.750 | 2.375 | 2-7/8 EUE & STUB ACME | BR-ACHL-3250 |
| 4.000 | 5.188 | 3.000 | 3-1/2 EUE & STUB ACME | BR-ACHL-4000 |
| 4.750 | 6.062 | 3.500 | 3-1/2 EUE & STUB ACME | BR-ACHL-4750 |
| 5.000 | 5.825 | 4.000 | 4-1/2 EUE & STUB ACME | BR-ACHL-5000 |
| 6.000 | 7.500 | 4.750 | 5-1/2 LTC & STUB ACME | BR-ACHL-6000 |
| 7.000 | 8.060 | 5.875 | 6-5/8 LTC & STUB ACME | BR-ACHL-7000 |
NOTE: Other sizes of sealbore and connections available upon request. Please contact Brighatech Sales.
