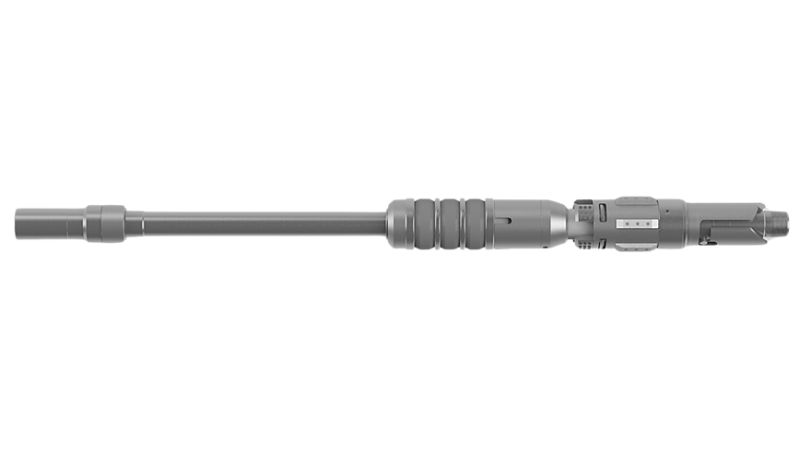

BR-S2 is a single grip packer with or without upper hold down for use where no differential pressure from below is present.
Features a large bypass area to prevent swabbing when running or retrieving. BR-S2 is a 1/4 turn set and straight pickup release type packer which makes it ideal when picking up the tubing string after completion of treating, stimulation or injection operations.
BR-S2 is an ideal packer for isolating casing holes, perforations or injection purposes when used as the lower packer in conjunction with the Snap Set - II, as the upper packer.
Features:
- Large Internal Bypass.
- Optional Setting bottoms.
- 1/4 turn set and straight pick up release.
- Additional J-slot arrangement available.
- Three Element system.
Technical document
Product Specifications
| CASING | PACKER | ||||||
|---|---|---|---|---|---|---|---|
| O.D. (in.) | Weight (lbs/ft) | MIN. I.D. (in.) | MAX. I.D. (in.) | Gage O.D. (in.) | MIN. I.D. (in.) | Thread Connections | Part Number |
| 4.000” | 9.5-11.6 | 3.428 | 3.548 | 3.281 | 1.750 | 2-3/8” EU 8RD | BR-S2-400230 |
| 4.500” | 15.1-16.6 | 3.754 | 3.826 | 3.594 | 1.875 | 2-3/8” EU 8RD | BR-S2-450230B |
| 4.500” | 9.5-13.5 | 3.920 | 4.090 | 3.750 | 1.875 | 2-3/8” EU 8RD | BR-S2-450230A |
| 5.000” | 18.0-21.0 | 4.154 | 4.276 | 4.000 | 1.875 | 2-3/8” EU 8R | BR-S2-500230C |
| 5.000” | 15.0-18.0 | 4.276 | 4.408 | 4.125 | 1.875 | 2-3/8” EU 8R | BR-S2-500230B |
| 5.000” | 11.5-15.0 | 4.408 | 4.560 | 4.250 | 1.875 | 2-3/8” EU 8R | BR-S2-500230A |
| 5.500” | 20.0 - 23.0 | 4.670 | 4.778 | 4.500 | 1.969 | 2-3/8" EU 8 RD | BR-S2-550230B |
| 5.500” | 14.0 - 20.0 | 4.778 | 5.044 | 4.625 | 1.969 | 2-3/8" EU 8 RD | BR-S2-550230A |
| 5.750” | 22.5 | 4.950 | 5.190 | 4.781 | 1.969 | 2-3/8" EU 8 RD | BR-S2-575230 |
| 6.625” | 24 | 5.830 | 5.921 | 5.656 | 2.500 | 2-7/8" EU 8 RD | BR-S2-66070A |
| 6.625” | 17-20 | 6.049 | 6.135 | 5.813 | 2.500 | 2-7/8" EU 8 RD | BR-S2-66070A |
| 7.000” | 32.0-38.0 | 5.830 | 6.094 | 5.688 | 2.500 | 2-7/8" EU 8 RD | BR-S2-700270D |
| 7.000” | 26.0-32.0 | 6.094 | 6.276 | 5.938 | 2.500 | 2-7/8" EU 8 RD | BR-S2-700270C |
| 7.000” | 20.0-26.0 | 6.276 | 6.456 | 6.078 | 2.500 | 2-7/8" EU 8 RD | BR-S2-700270B |
| 7.000” | 17.0-20.0 | 6.456 | 6.538 | 6.266 | 2.500 | 2-7/8" EU 8 RD | BR-S2-700270A |
| 7.000” | 32.0-38.0 | 5.830 | 6.094 | 5.688 | 3.000 | 3-1/2” EU 8 RD | BR-S2-700350D |
| 7.000” | 26.0-32.0 | 6.094 | 6.276 | 5.938 | 3.000 | 3-1/2” EU 8 RD | BR-S2-700350C |
| 7.000” | 20.0-26.0 | 6.276 | 6.456 | 6.078 | 3.000 | 3-1/2” EU 8 RD | BR-S2-700350B |
| 7.000” | 17.0-20.0 | 6.456 | 6.538 | 6.266 | 3.000 | 3-1/2” EU 8 RD | BR-S2-700350A |
| 7.625” | 33.7-39.0 | 6.625 | 6.765 | 6.453 | 3.000 | 3-1/2” EU 8 RD | BR-S2-760350C |
| 7.625” | 24.0 – 29.7 | 6.875 | 7.025 | 6.675 | 3.000 | 3-1/2” EU 8 RD | BR-S2-760350B |
| 7.625” | 20.0-24.0 | 7.025 | 7.125 | 6.813 | 3.000 | 3-1/2” EU 8 RD | BR-S2-760350A |
| 8.625” | 24.0-40.0 | 7.725 | 8.097 | 7.500 | 3.000 | 3-1/2” EU 8 RD | BR-S2-860350 |
| 9.625” | 43.5-53.5 | 8.535 | 8.755 | 8.250 | 3.000 | 3-1/2” EU 8 RD | BR-S2-960350B |
| 9.625” | 32.3-43.5 | 8.755 | 9.001 | 8.500 | 3.000 | 3-1/2” EU 8 RD | BR-S2-960350A |
| 10.750” | 32.7 - 55.5 | 9.760 | 10.192 | 9.500 | 4.000 | 4-1/2” EU 8 RD | BR-S2-1075450 |
| 11.750” | 42.0 - 60.0 | 10.772 | 11.084 | 10.500 | 4.000 | 4-1/2” EU 8 RD | BR-S2-1175450 |
| 13.375” | 48.0 - 77.0 | 12.275 | 12.715 | 12.000 | 4.000 | 4-1/2” EU 8 RD | BR-S2-1330450 |
