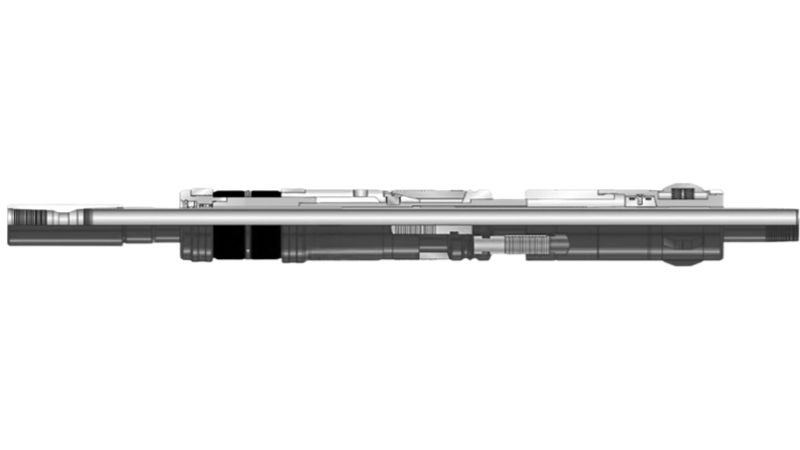

The BR-LS is a compression-set, retrievable packer that allows the tubing to be landed in a tension, compression, or neutral condition. Right hand rotation sets and releases the packer, making the tool simple and reliable to operate.
Coatings can be applied for corrosion resistance in waterflood applications. Internal bypass allows pressure equalization before the slips are unset, providing safety and reliability.
Features:
- Opposed dovetail slips for positive set.
- Right-hand rotation sets or releases the packer.
- Convertible to mechanical bridge plug with the addition of a T-2 On/Off tool and blanking plug.
- Tubing can be disconnected above packer.
- Internal bypass allows pressure equalization before packer is unset.
- Parts interchangeable with equipment from other manufacturers.
Technical document
Product Specifications
| CASING | PACKER | ||||||
|---|---|---|---|---|---|---|---|
| Size (in.) | Weight (lbs/ft) | MIN. I.D. (in.) | MAX. I.D. (in.) | Gage O.D. (in.) | MIN. I.D. (in.) | Thread Connection | Part Number |
| 4.500” | 11.6-13.5 | 3.920 | 4.000 | 3.750 | 1.922 | 2-3/8" EU 8 RD | BR-LS-450230B |
| 4.500” | 9.5 - 10.5 | 4.052 | 4.090 | 3.750 | 1.922 | 2-3/8" EU 8 RD | BR-LS-450230A |
| 5.000” | 15.0-18.0 | 4.250 | 4.408 | 4.125 | 1.922 | 2-3/8" EU 8 RD | BR-LS-500230B |
| 5.000” | 11.5 - 15.0 | 4.408 | 4.560 | 4.250 | 1.922 | 2-3/8" EU 8 RD | BR-LS-500230A |
| 5.500” | 26 | 4.548 | 4.560 | 4.250 | 1.969 | 2-3/8" EU 8 RD | BR-LS-550230C |
| 5.500” | 20.0-23.0 | 4.625 | 4.777 | 4.500 | 1.969 | 2-3/8" EU 8 RD | BR-LS-550230B |
| 5.500” | 15.5-20.0 | 4.778 | 4.892 | 4.641 | 1.969 | 2-3/8" EU 8 RD | BR-LS-550230A |
| 5.500” | 13.0-15.5 | 4.950 | 5.044 | 4.781 | 1.969 | 2-3/8" EU 8 RD | BR-LS-550230D |
| 5.500” | 26 | 4.548 | 4.560 | 4.250 | 2.375 | 2-7/8" EU 8 RD | BR-LS-550270C |
| 5.500” | 20.0-23.0 | 4.625 | 4.777 | 4.500 | 2.375 | 2-7/8" EU 8 RD | BR-LS-550270B |
| 5.500” | 15.5-20.0 | 4.778 | 4.892 | 4.641 | 2.375 | 2-7/8" EU 8 RD | BR-LS-550270A |
| 5.500” | 13.0-15.5 | 4.950 | 5.044 | 4.781 | 2.375 | 2-7/8" EU 8 RD | BR-LS-550270D |
| 6-5/8” | 20.0-24.0 | 5.921 | 5.938 | 5.656 | 2.375 | 2-7/8" EU 8 RD | BR-LS-660270B |
| 6-5/8” | 17.0-20.0 | 6.048 | 6.135 | 5.813 | 2.375 | 2-7/8" EU 8 RD | BR-LS-660270A |
| 7.000” | 35.0-38.0 | 5.920 | 5.937 | 5.656 | 2.500 | 2-7/8” EU 8 RD | BR-LS-700270E |
| 7.000” | 32.0-35.0 | 6.004 | 6.094 | 5.813 | 2.500 | 2-7/8” EU 8 RD | BR-LS-700270D |
| 7.000” | 26.0-29.0 | 6.184 | 6.276 | 5.938 | 2.500 | 2-7/8” EU 8 RD | BR-LS-700270C |
| 7.000” | 23.0-26.0 | 6.276 | 6.366 | 6.078 | 2.500 | 2-7/8” EU 8 RD | BR-LS-700270B |
| 7.000” | 17.0-20.0 | 6.456 | 6.538 | 6.250 | 2.500 | 2-7/8” EU 8 RD | BR-LS-700270A |
| 7.000” | 35.0-38.0 | 5.920 | 5.937 | 5.656 | 3.000 | 3-1/2” EU 8 RD | BR-LS-700350E |
| 7.000” | 32.0-35.0 | 6.004 | 6.094 | 5.813 | 3.000 | 3-1/2” EU 8 RD | BR-LS-700350D |
| 7.000” | 26.0-29.0 | 6.184 | 6.276 | 5.938 | 3.000 | 3-1/2” EU 8 RD | BR-LS-700350C |
| 7.000” | 23.0-26.0 | 6.276 | 6.366 | 6.078 | 3.000 | 3-1/2” EU 8 RD | BR-LS-700350B |
| 7.000” | 17.0-20.0 | 6.456 | 6.538 | 6.250 | 3.000 | 3-1/2” EU 8 RD | BR-LS-700350A |
| 7.625” | 33.7-39.0 | 6.625 | 6.765 | 6.453 | 3.000 | 3-1/2” EU 8 RD | BR-LS-760350C |
| 7.625” | 24.0-29.7 | 6.875 | 7.025 | 6.675 | 3.000 | 3-1/2” EU 8 RD | BR-LS-760350B |
| 7.625” | 20.0-24.0 | 7.025 | 7.125 | 6.675 | 3.000 | 3-1/2” EU 8 RD | BR-LS-760350A |
| 8.625” | 44.0-49.0 | 7.511 | 7.625 | 7.313 | 3.000 | 3-1/2” EU 8 RD | BR-LS-860350C |
| 8.625” | 32.0-40.0 | 7.725 | 7.921 | 7.531 | 3.000 | 3-1/2” EU 8 RD | BR-LS-860350B |
| 8.625” | 20.0-28.0 | 8.017 | 8.191 | 7.781 | 3.000 | 3-1/2” EU 8 RD | BR-LS-860350A |
| 9.625” | 47.0-53.5 | 8.535 | 8.681 | 8.25 | 3.000 | 3-1/2” EU 8 RD | BR-LS-860350C |
| 9.625” | 40.0-47.0 | 8.681 | 8.835 | 8.5 | 3.000 | 3-1/2” EU 8 RD | BR-LS-860350B |
| 9.625” | 29.3-40.0 | 8.835 | 9.063 | 8.625 | 3.000 | 3-1/2” EU 8 RD | BR-LS-860350A |
| 10.750” | 43.5-53.5 | 9.760 | 9.950 | 9.750 | 4.000 | 4-1/2” EU 8 RD | BR-LS-1075450A |
