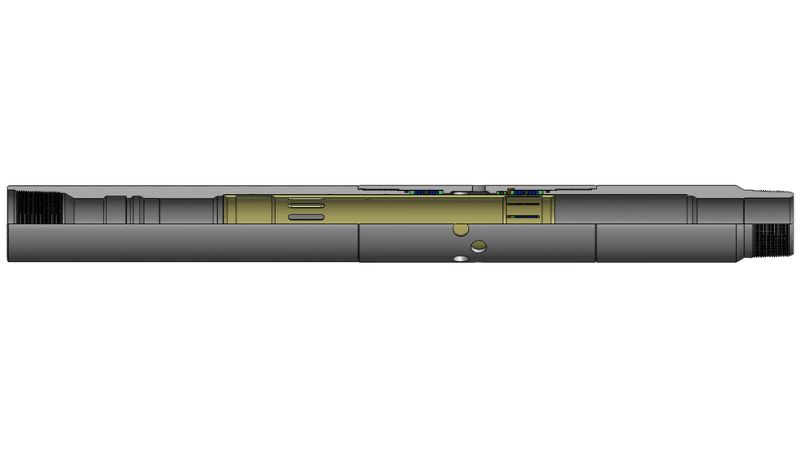

The communication device BRSSD-XOEL Sliding Sleeve has a ported inner sleeve that may be opened or closed using a shifting tool and conventional coiled tubing or slickline techniques. As the sleeve is opened, equalizing perforations in the inner sleeve equalize pressure between the tubing and casing annulus.This SSD is shift down to open.
The BRSSD-XOEL Sliding Sleeve uses common machined parts that allow the shift-open direction to be changed from down-to-open to up-to-open by simply substituting different sub ends.
The BRSSD-XOEL Sliding Sleeve is used to establish a means of communication between the tubing string and the casing annulus for single-tubing or multiple-tubing string completions. The BRSSD-XOEL Sliding Sleeve may be used for directing flow from the casing to the tubing in alternate or selective completions. Other applications include killing a well, spot acidizing and fracturing, or equalizing pressure between an isolated formation and the tubing string.
This Sliding Sleeve is available in various metallurgy like AISI 4140, L-80, 9Cr or 13Cr.
Features:
- Compact and simple field proven design, that is cost effective and reliable, with a long operating life.
- Simple positive control of tubing to annulus communication.
- Inexpencive way to achieve zonal isolation and control.
- Integral sitting nipple profile for well control.
Technical document
Product Specification
| Size | Seal Bore I.D. | Thread Connection | Part Number |
|---|---|---|---|
| 2-3/8'' | 1.875" | 2-3/8" EUE 8RD THREAD | BRSSD-XOEL-187230E |
| 2-7/8'' | 2.250" | 2-7/8" EUE 8RD THREAD | BRSSD-XOEL-225270E |
| 2-7/8'' | 2.313" | 2-7/8" EUE 8RD THREAD | BRSSD-XOEL-231270E |
| 3-1/2'' | 2.750" | 3-1/2" EUE 8RD THREAD | BRSSD-XOEL-275350E |
| 3-1/2'' | 2.813" | 3-1/2" EUE 8RD THREAD | BRSSD-XOEL-281350E |
| 4-1/2'' | 3.813" | 4-1/2" EUE 8RD THREAD | BRSSD-XOEL-381450E |
Note: Other Sizes are available upon request. Premium connection and premium metallurgy construction available upon request. Please contact Brighatech sales.
