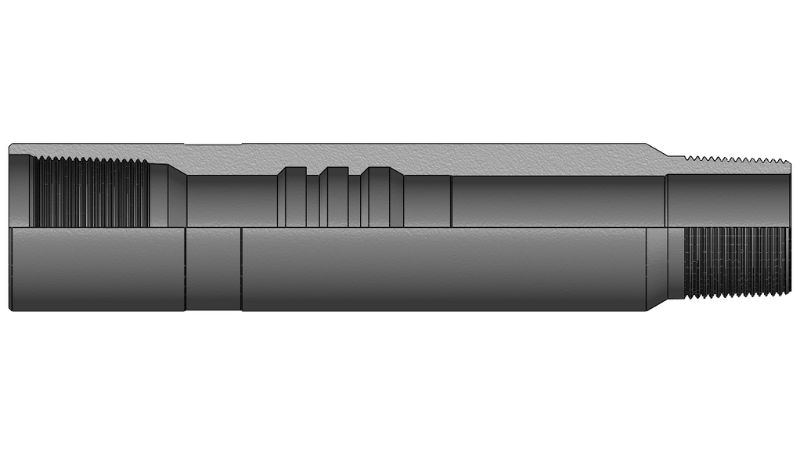

BROR Selective Landing Nipple
(OR-Type)

Model BROR Selective Landing Nipple (OR-Type) is a top No-Go or selective nipple which provides for the location of various wireline flow control devices. Brighatech's BROR selective nipples, allowing for the distinct position of flow-control accessories within a tubing string for smooth and seamless well operations. Any desired number of “BROR” Nipples can be placed in the production string, thereby offering an unlimited number of positions for setting and locking surface controls.

The Model BROR Selective Landing Nipple (OR-Type) can be used in heavy tubing applications, as the blanking plug offers a higher pressure rating than the normal weight tubing blanking plugs. The BROR selective nipple from Brighatech is in robust construction, which guarantees longevity and resilience, even in the harshest well conditions.

Applications:
  • Land blanking plugs to shut in well or test the production tubing.
  • Land velocity type safety valves.
  • Land equalizing check valves.
  • Land chokes to reduce surface flowing pressures.
  • Land instrument hangers such as pressure and temperature recorders.
Features:
  • ‘OR’ Profile, Acceptable all around globe.
  • Internal sealing bore for maximum sealing capacities.
  • Nipple bore compatible with tubing size and weight to permit flow capacity.
  • Designed for standard tubing weight.
  • Premium threads available upon request.
  • Premium grades of material available upon request.
Technical document

Product Specification

Size Seal Bore I.D. Thread Connection Part Number
2-3/8'' 1.875'' 2-3/8" EUE 8RD THREAD BROR-187-230E
2-3/8'' 1.905'' 2-3/8" EUE 8RD THREAD BROR-190-230E
2-7/8'' 2.313'' 2-7/8" EUE 8RD THREAD BROR-231-270E
2-7/8'' 2.350'' 2-7/8" EUE 8RD THREAD BROR-235-270E
3-1/2''  2.750'' 3-1/2" EUE 8RD THREAD BROR-275-350E
3-1/2''  2.813'' 3-1/2" EUE 8RD THREAD BROR-281-350E
3-1/2''  2.875'' 3-1/2" EUE 8RD THREAD BROR-287-350E
4-1/2'' 3.813'' 4-1/2" EUE 8RD THREAD BROR-381-450E

Note: Other Sizes are available upon request. Please contact Brighatech sales.
