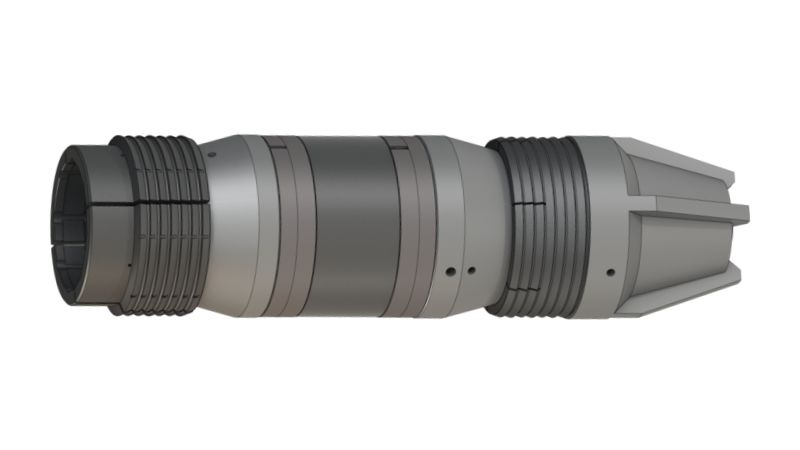

BR-MSBP cast iron Bridge Plug is a compact and economical unit engineered for fast running down hole on Mechanical Setting tool. This Bridge Plug is a fully drillable, high performance permanent TYPE suitable for zone abandonment or temporary suspension.
The Bridge Plug may be set mechanically by MST. Bridge Plug may be converted to Cement retainer by replacing Bottom and insert Collet.
Features
- Cast iron drillable design.
- Runs with Mechenical Setting Tool.
- Converts to a Mechenical Set Cement Retainer.
- Components rotationally locked for easy drill out.
- Temperature rating to 400°Fahrenheit.
- Differential pressure rating to 10,000 psi.
Technical document
Product Specifications
| CASING | Bridge Plug | ||||
|---|---|---|---|---|---|
| O.D. (Inch) |
WEIGHT (LB/FT) | MIN. I.D. (Inch) | MAX. I.D. (Inch) | MAX. O.D. (Inch) | Part Number |
| 4.500” | 9.5-15.1 | 3.826 | 4.090 | 3.625 | BR-MSBP-450 |
| 5.000” | 11.5-18.0 | 4.276 | 4.560 | 4.000 | BR-MSBP-500 |
| 5.500” | 13.0-23.0 | 4.670 | 5.118 | 4.375 | BR-MSBP-550 |
| 5.750” | 14.0-25.2 | 4.890 | 5.290 | 4.750 | BR-MSBP-575 |
| 6.625” | 17.0-35.0 | 5.575 | 6.135 | 5.375 | BR-MSBP-660 |
| 7.000” | 17.0-35.0 | 6.004 | 6.538 | 5.688 | BR-MSBP-700 |
| 7.000” | 35.0-38.0 | 5.920 | 6.004 | 5.625 | BR-MSBP-705 |
| 7.625” | 20.0-39.0 | 6.625 | 7.125 | 6.375 | BR-WPB760 |
| 8.625” | 24.0-49.0 | 7.511 | 8.097 | 7.125 | BR-MSBP-860 |
| 9.625” | 29.3-61.1 | 8.375 | 9.063 | 8.250 | BR-MSBP-960 |
| 10.750” | 32.75-60.7 | 9.660 | 10.192 | 9.500 | BR-MSBP-1075 |
| 11.750” | 60.0-83.0 | 10.368 | 10.772 | 10.000 | BR-MSBP-1175B |
| 11.750” | 38.0-60.0 | 10.772 | 11.150 | 10.500 | BR-MSBP-1175A |
| 13.375” | 48.0-72.0 | 12.347 | 12.715 | 12.000 | BR-MSBP-1330 |
